▷System control software with independent intellectual property rights


▷Self-developed, state-owned brand of professional analytical instruments


▷All functions of sample injection, separation, derivation, testing and system cleaning and degassing are controlled automatically


▷Professional amino acid data acquisition software in accordance with GLP/21CFR, data traceability


▷The cationic chromatography combined with ninhydrin column derivatization and visible light spectrophotometry were used for detection


▷Comply with the relevant industry's national standards, Chinese Pharmacopoeia, European Union Pharmacopoeia (EP), in line with GLP/21CFR specifications



▷Net analysis time of proteolytic amino acids: 30-50min (depending on type and column type)


▷ Protein hydrolyzed amino acid separation: ≥1.3


▷ Retention time Reproducibility:≤0.1%CV (all amino acids)


▷ Peak area reproducibility:≤0.5%CV (all amino acids)


▷ Detection limit: ≤2.5pmol (SNR =2, Asp)

New product: HT-1100 automatic amino acid analyzer



HTYN introduces the HT-1100 fully automatic amino acid analyzer, which marks HTYN HT series amino acid analyzer technology level has reached a new level!


So far, HTYN has successfully launched four series of amino acid analyzers, including HT-10, HT-11, HT-12 and HT-20, to the market, meeting the various needs of different industries and different applications, providing users with a variety of choices for purchasing amino acid analyzers, not only in the leading position in China, but also in the market. And with the imported amino acid analyzer has the same technical level.

HT-2020Ultra-high speed automatic amino acid analyzer



     HTYN launched HT-2020 ultra-high speed automatic amino acid analyzer on June 16, 2022, which marks a new level of technical level of HTYN HT series amino acid analyzer!


     The HT-2020 ultra-high speed automatic amino acid analyzer can analyze 18 proteolytic amino acids within 30 minutes and 42 free amino acids within 60 minutes, which greatly shortens the analysis time and improves the work efficiency. The launch of this series better meets the needs of testing departments for long-term and large-scale sample detection. In the domestic industry in a leading position.


     So far, HTYN has successfully launched four series of amino acid analyzers, including HT-10, HT-11, HT-12 and HT-20, to the market, meeting the various needs of different industries and different applications, providing users with a variety of choices for purchasing amino acid analyzers, not only in the leading position in China, but also in the market. And with the imported amino acid analyzer has the same technical level.

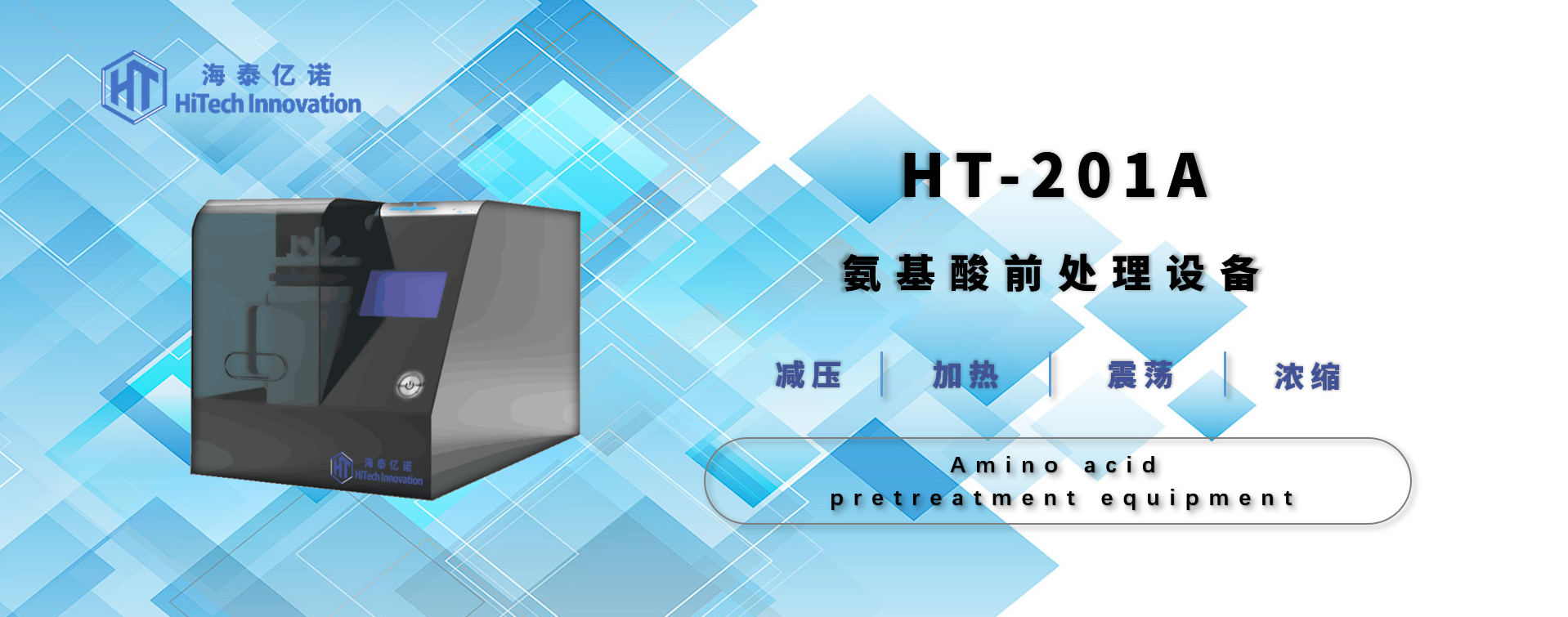

Integrated design, easy operation, good effect, no residue

The inherent problems such as unit dispersion and complicated operation in the amino acid pretreatment system were solved


Main uses:

1. Concentration of solvent extraction samples

2. Concentration of amino acids, proteins, peptides, etc

3. Other samples that need to be concentrated


Functions: decompression, heating, shock, concentration


Deacidifying unit

Temperature control: +60℃±0.1℃

Heating power: 100W

Vibration frequency: 10 ~ 2000rpm, amplitude 5mm


Vacuum unit

Maximum vacuum degree: 0.098Mpa

Power: 180W


Buffer unit

Buffer: 1000mLx3

  • Can be used with any brand of liquid chromatograph (HPLC) for the detection of hydroly zed or free amino acids

  • More than 20 kinds of hydrolyzed amino acids can be analyzed with a single injection of sodium salt system.The net analysis time is ≤50min

  • The lithium salt system can analyze more than 20 kinds of hydrolyzed amino acids and more than 42 kinds of free amino acids, and the net extraction time is less than 110min

  • Retention time reproducibility * : RSD of all hydrolyzed amino acids   ≤0.2%

  • Peak area reproducibility * : RSD of all hydrolyzed amino acids≤0.8%

  • Separation degree * : all hydrolyzed amino acids ≥98% (average), threonine/serine Thr-         Ser≥95%, glycine/alanine Gly-Ala≥94%, leucine/isoleucine Leu-Ile≥95%

    （ * Due to the different brands and models of HPLC used, the technical indicators are different, and the actual measurement shall prevail）




HT-1010 Amino Acid Analyzer

Three gradient separation mode
It can realize the effective separation of some difficult amino acids, and has a higher separation degree than the traditional amino acid analyzer
PRODUCT

The independently developed HT series amino acid analyzer, drawing on international advanced technology and design concept, improves the shortcomings of imported instrument procurement, use and maintenance costs, and better ADAPTS to the application needs of domestic users. The performance of the instrument has reached the international advanced level and is in the leading position in China.

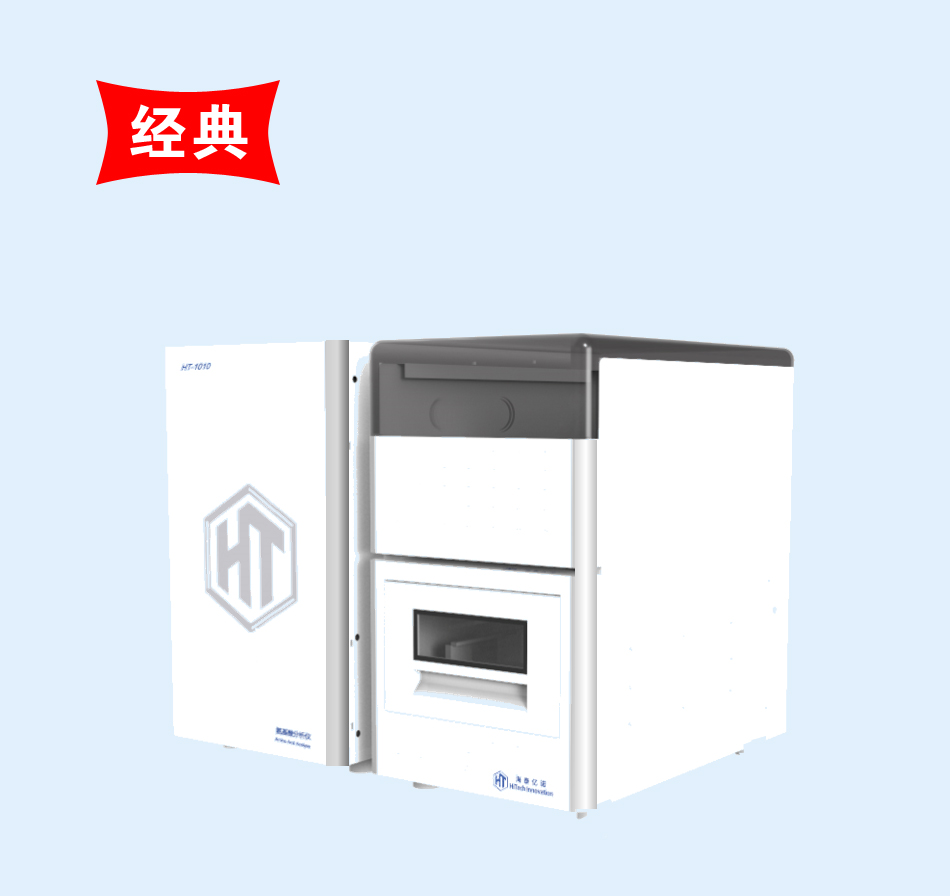

HT-1010 classic version automatic amino acid analyzer Classic configuration, excellent performance, fully automatic control operation, wide application HT-1100 type innovative automatic amino acid analyzer Innovative design, good feedback, high performance and low cost HT-1105 economy version semi-automatic amino acid analyzer Manual sampling, continuous automatic control operation, cost-effective HT-2020 high speed automatic amino acid analyzer High detection efficiency, large sample size, rapid analysis HT-1010plus customized automatic amino acid analyzer
Directional services, program customization, to meet the needs of special industry users


The key components of the instrument have world-class quality and excellent performance to ensure the stable operation of the system
Derivative reagents and buffer reagents are all domestic, and the cost of reagents is much lower than that of similar imported products
The main components are localized, which reduces the production, operation and maintenance costs of the instrument
All the technical indicators of the instrument have reached (partially exceeded) similar imported brands
01
The sodium salt system can be used to analyze 18~25 hydrolyzed amino acids
02
The lithium salt system was used to analyze 21 hydrolyzed amino acids and 43 free amino acids without changing the buffer and separation column

03
Meet all current national standards All amino acids in the current national standard can be analyzed
04
Reagent consumption: All domestic reagents are used
The cost is only 20% to 30% of the imported reagent
05
Accessories consumption: no mechanical consumables
06
There is no need to replace the light source and no consumable products during the lifetime of the instrument (15 years)

It can realize instrument control, data acquisition and processing
It can realize the automatic cleaning procedure of the system, in accordance with GLP/GMP rules
Ability to perform system validation tests, custom customer reports and user security verification

软件
电脑操作系统
64位操作系统，Windows系统
具有氨基酸词库、双通道合并、自动谱图识别和强大统计功能，数据可导出
可自动把测试数据导入Excel，无需手动粘贴，也可输出PDF格式并批量打印
硬件
可根据所测样品个数自动计算每种试剂所需量，以提前预测试剂是否足够
符合GLP规范，具有自动记录、自动紧急停机、故障定位、远程诊断、网络通讯、远程控制等功能
意外断电时系统自动清洗管路
防止管路堵塞

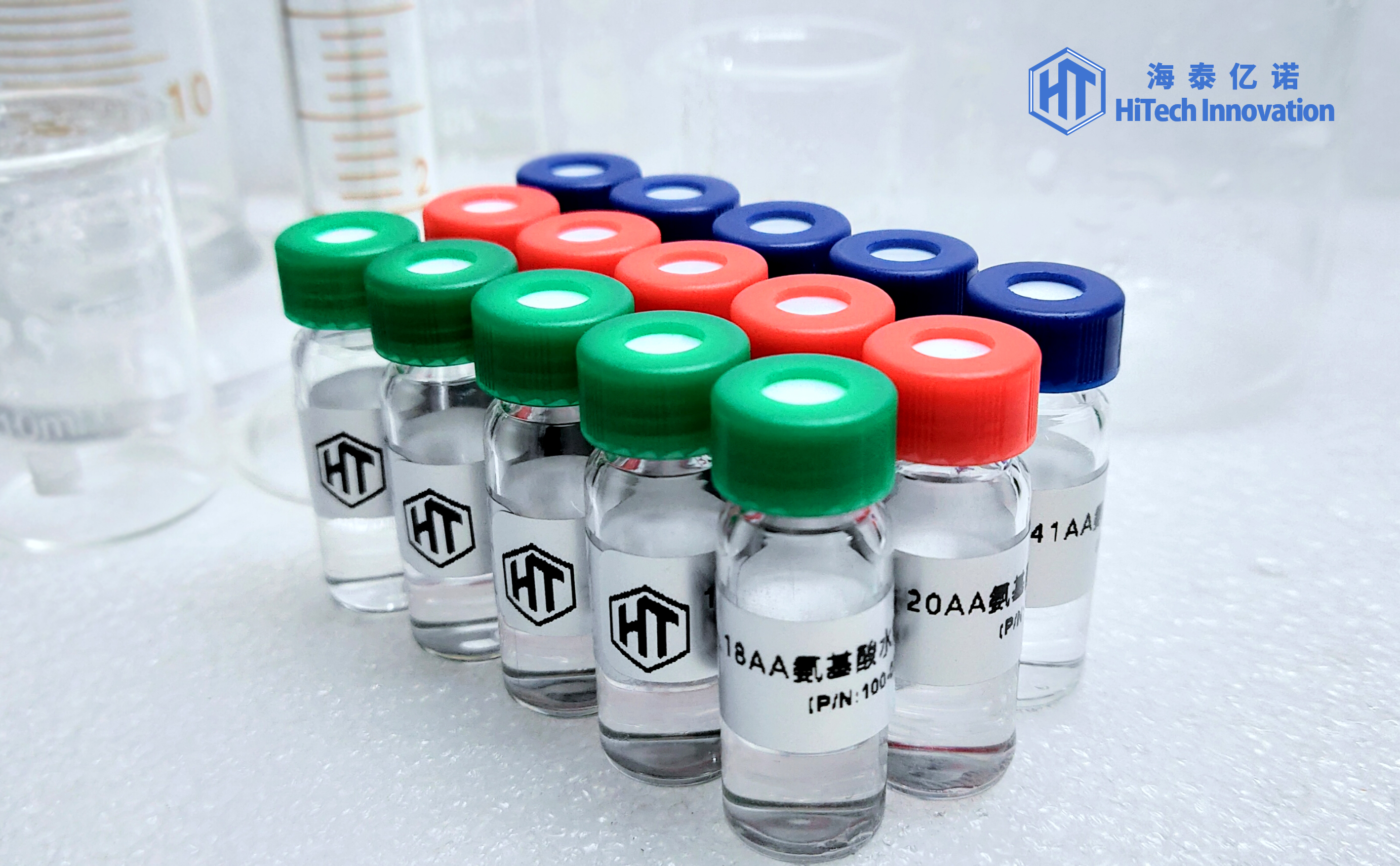

Amino acid standard sample

18 standard samples of hydrolyzed amino acids 20 standard samples of hydrolyzed amino acids 41 free amino acid standard samples 42 free amino acid standard samples

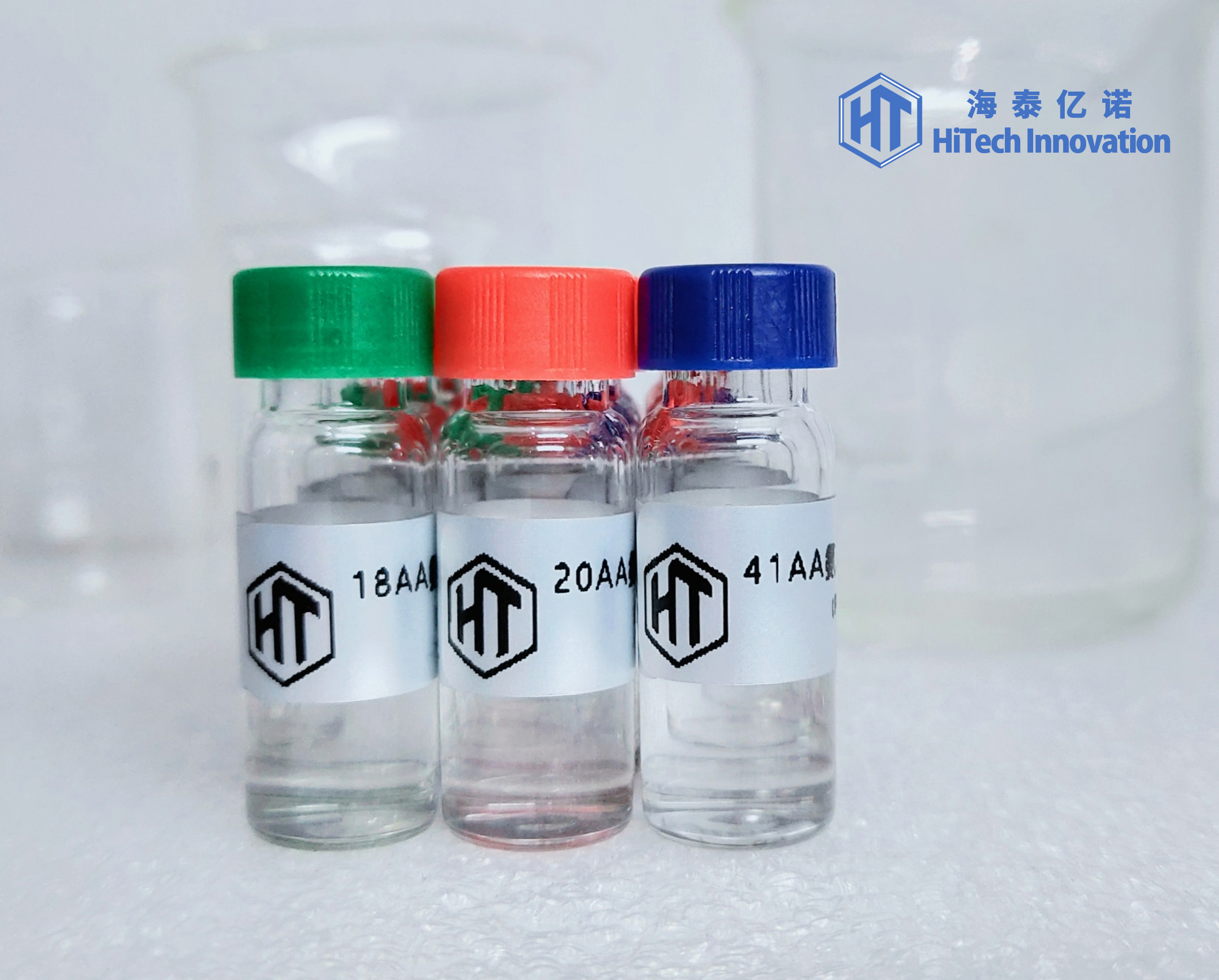

Individual box

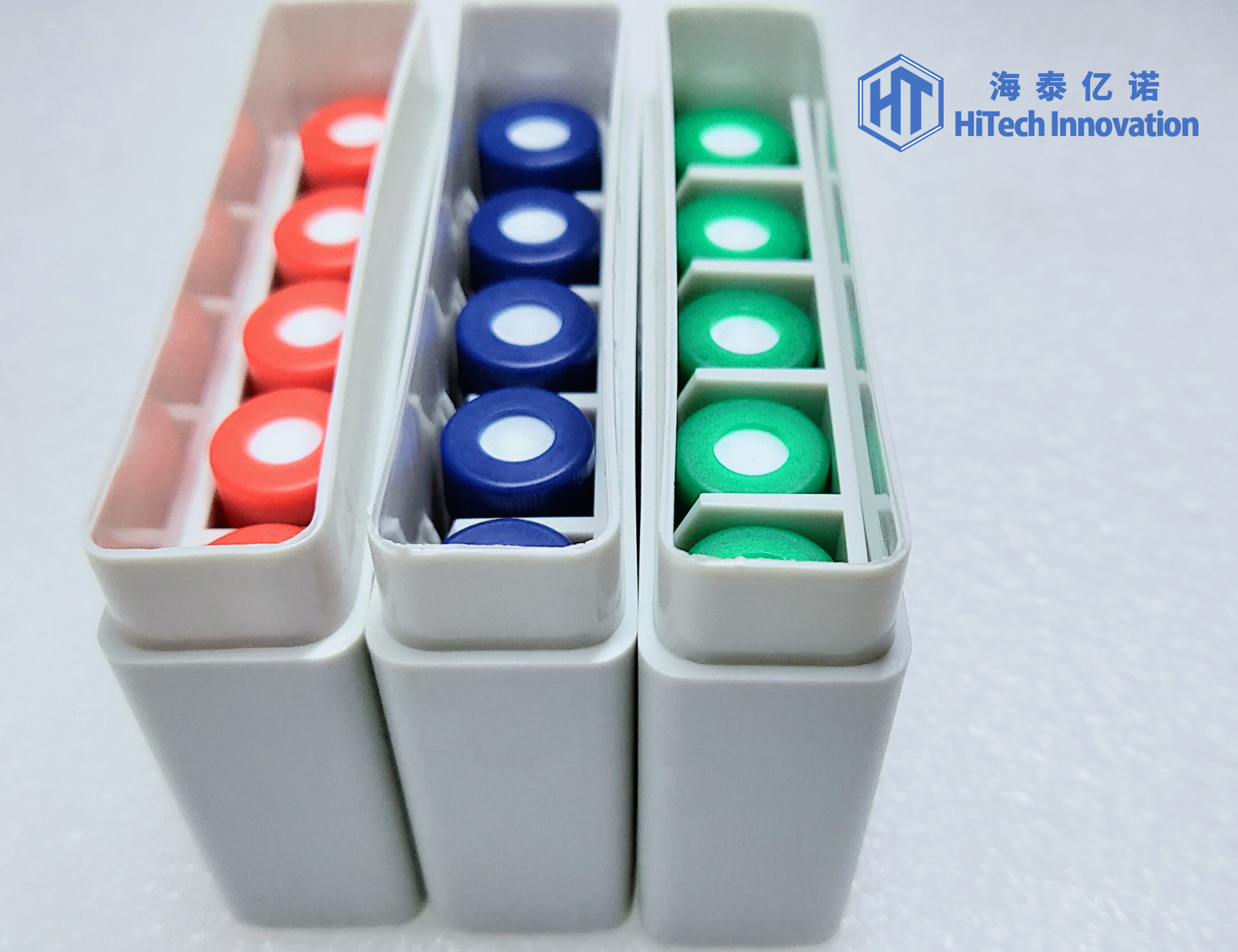

Green bottle cap - standard sample of 18 hydrolyzed amino acids Red bottle cap - 20 hydrolyzed amino acid standard samples Blue cap - 41/42 free amino acid standard samples
Amino acid standard sample

The 18 standard samples of hydrolyzed amino acids were mainly used for the detection of feed and other samples The 20 standard samples of hydrolyzed amino acids are mostly used for the detection of food, medicine and other samples The 41 free amino acid standard samples were mainly used for the detection of fermented products and physiological body fluids The 42 free amino acid standard samples were mainly used for the detection of fermented products and physiological body fluids A variety of single, mixed (can be provided according to user requirements
Special amino acid separation column

Na salt system separation column Li salt system separation column Special cation exchange resin for amino acid analyzer is used Higher resolution and longer life

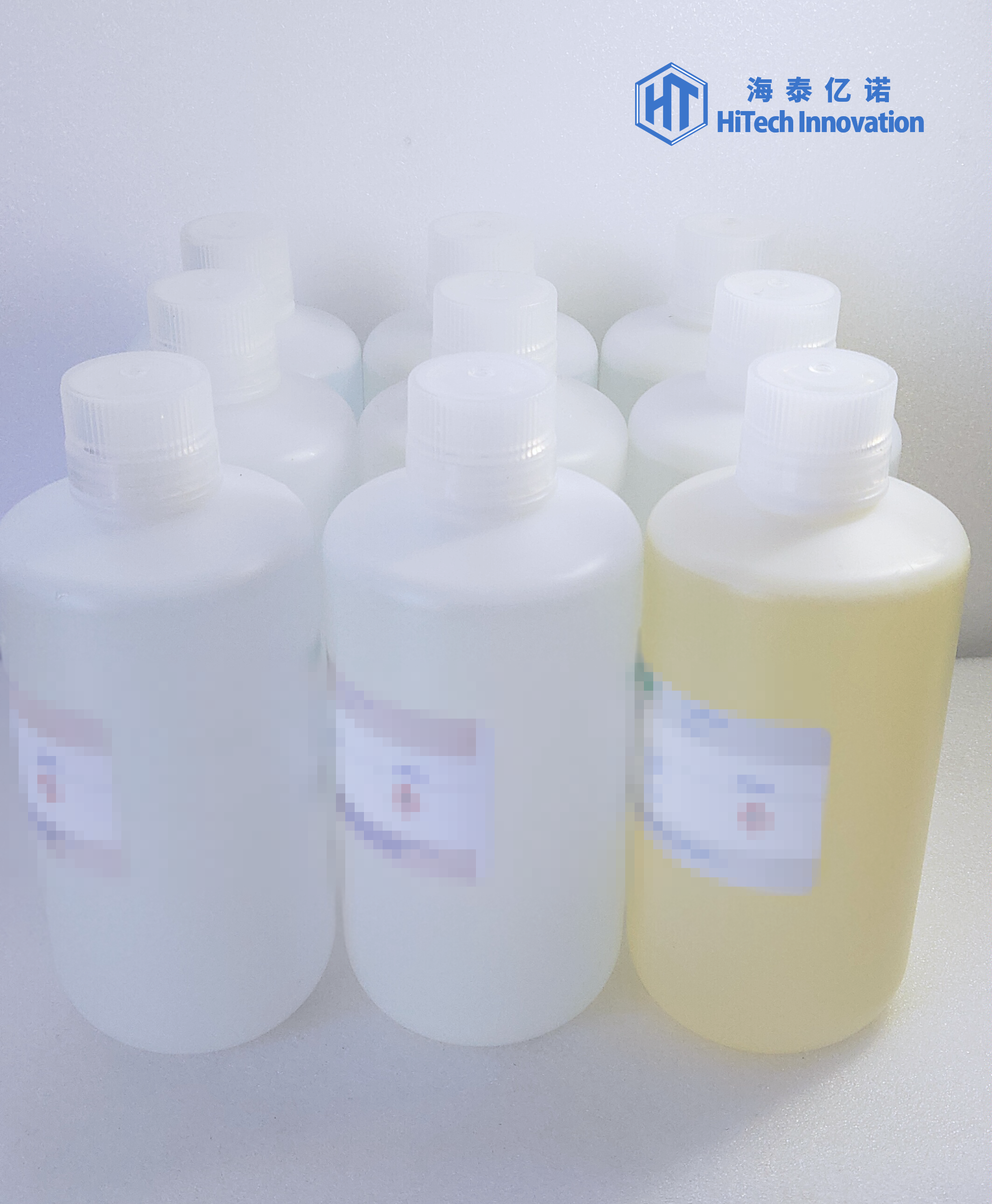

Special amino acid analysis buffer reagent kit

Na salt system buffer reagent kit Li salt system buffer reagent kit Special amino acid analysis formula was adopted Room temperature storage temperature, shelf life 1-2 years

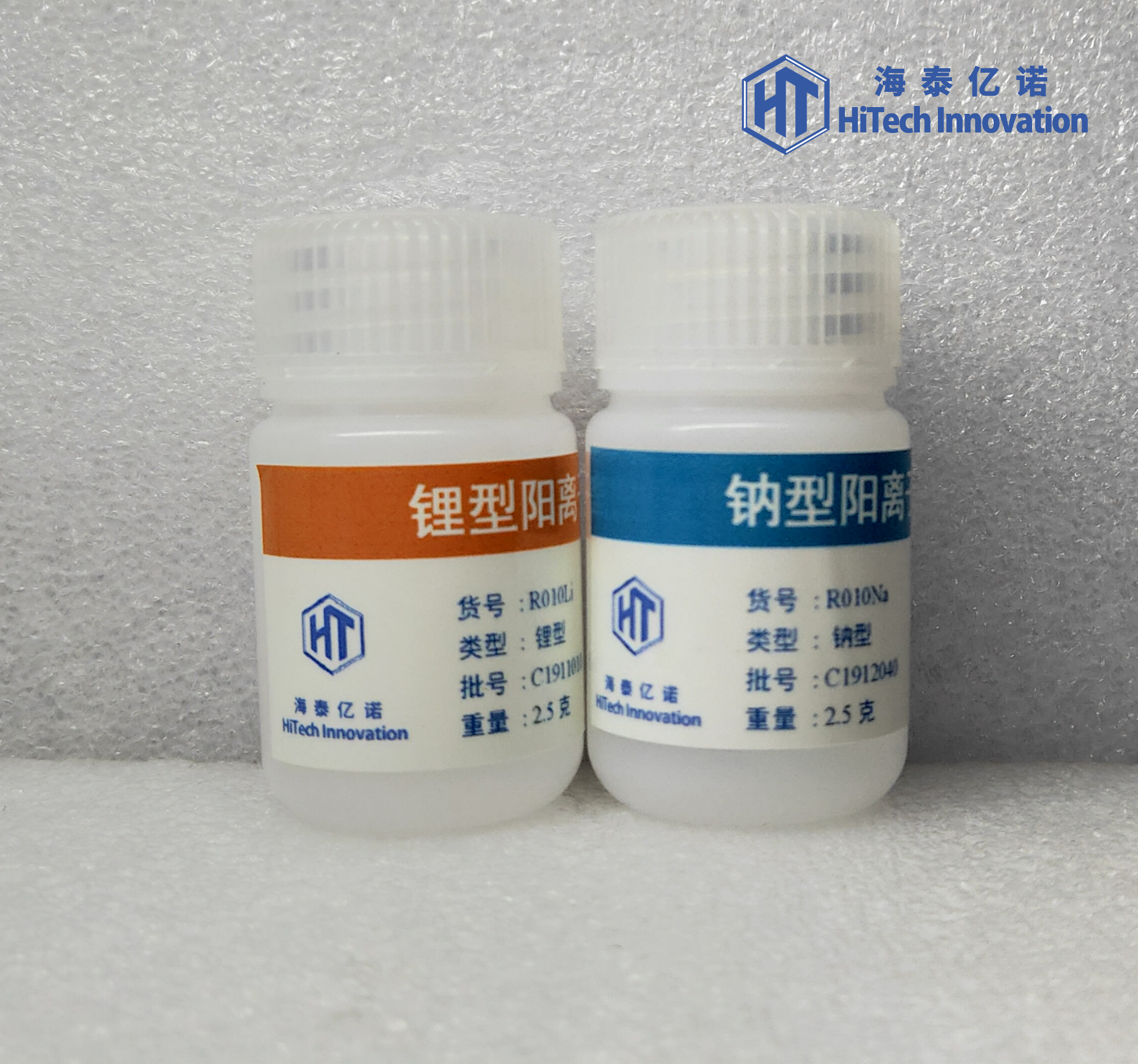

Special cation exchange resin

Lithium type cationic resin
Sodium type cationic resin
